Acoustic/Electric Basses
From The Unofficial Epiphone Wiki
Contents |
El Sugundo
El Segundo
- 2007-2008
Body:
- Mahogany body
- Laminated spruce top
- Round soundhole
Neck:
- Set maple neck with SlimTaper profile
- Rosewood fingerboard with dot inlays
- 2-ply truss rod cover with "El Segundo" inscription
- 22 frets
- 34" scale
- 1.65" nut width
Binding:
- Single-ply body & neck
- 9-ply single-ring rosette
Elecronics:
- Piezo under saddle transducer pickup
- Epiphonic Six pre amp
- Vol., Sub Bass, Bass, Mid, Treble & Bright slider controls
- Battery low indicator
- Antifeedback control
Hardware:
- Chrome hardware
- Die cast tuners
- Rosewood bridge
Colors:
- Natural (NA)
El Segundo Cutaway
- Model EBS4
- 2001-2006
Body:
- Mahogany cutaway body
- Laminated spruce top
- Round soundhole
Neck:
- Set maple neck with SlimTaper profile
- Rosewood fingerboard with dot inlays
- Black or Rosewood veneer headstock
- 2-ply truss rod cover with "El Segundo" inscription
- 22 frets
- 34" scale
- 1.65" nut width
Binding:
- 5-ply body
- Single-ply neck
- 9-ply single-ring rosette
Elecronics:
- Piezo under saddle transducer pickup
- Epiphonic Six pre amp
- Vol., Sub Bass, Bass, Mid, Treble & Bright slider controls
- Battery low indicator
- Antifeedback control
Hardware:
- Chrome hardware
- Die cast tuners
- Rosewood bridge
Colors:
- Natural (NA)

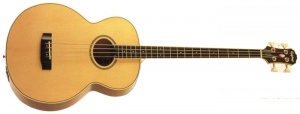

El Capitan
El Capitan
- Model EBEC
- 1995-2000
Body:
- Maple body & top
- Oval soundhole
Neck:
- Set maple neck
- Rosewood fingerboard with dot inlays
- 34" scale
- 1.65" nut width
Binding:
- 7-ply body
- Single-ply neck
- Multi-ply 1-ring rosette
Electronics:
- Piezo under saddle transducer pickup
- Electar Epiphonic Six Preamp
- Volume, Sub Bass, Bass, Mid, Treble & Bright controls
- Low battery indicator
- Antifeedback control
Hardware:
- Chrome hardware
- Die cast tuners
- Rosewood bridge
Colors:
- Natural (NA)

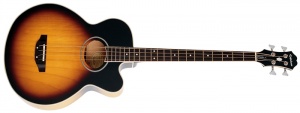

El Capitan Cutaway
- Model EBC4
- 1995-Current
Body:
- Single cutaway body
- Maple top, back & sides
- Oval soundhole
Neck:
- Set maple neck with SlimTaper profile
- Rosewood fingerboard with dot inlays

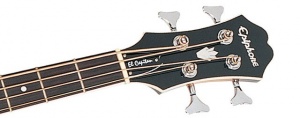

- Clipped-ear headstock with crown inlay (early models)
- Dovewing headstock with crown inlay (later models)
- 34" scale
- 1.73" nut width
Binding:
- 3-ply body binding
- Single-ply neck binding
- Multi-ply 1-ring rosette
Electronics:
- Piezo under saddle transducer pickup
- Electar Epiphoneic V or VI Preamp (early models)
- eSonic Preamp (Later models)
eSonic Preamp:
- Volume, Treble & bass controls
- Phase button
- Tuner/mute button
- Dynamics slider
- Low battery indicator
- Chromatic tuner
Epiphonic Six Preamp:
- Volume, Sub Bass, Bass, Mid, Treble & Bright sliders
- Low battery indicator
- Antifeedback control
Hardware:
- Chrome or nickel hardware
- Rosewood tie-bridge with inlaid pearloid dots
- Die cast tuners
- Rosewood bridge
Colors:
- Natural (NA)
- Ebony (EB)
- Vintage Sunburst (VS)
El Capitan Cutaway Fretless
- Model EBC4F
- 1996-2000
Body:
- Single cutaway body
- Maple body & top
- Oval soundhole
Neck:
- Set maple neck
- Rosewood fingerboard with dot inlays
- 34" scale
- 1.65" nut width
Binding:
- 7-ply body
- Single-ply neck
- Multi-ply 1-ring rosette
Electronics:
- Piezo under saddle transducer pickup
- Electar Epiphonic Six Preamp
- Volume, Sub Bass, Bass, Mid, Treble & Bright controls
- Low battery indicator
- Antifeedback control
Hardware:
- Chrome hardware
- Die cast tuners
- Rosewood bridge
Colors:
- Natural (NA)
El Capitan-5 Cutaway
- Model EBC5
- 1995-2000
Body:
- Single cutaway body
- Maple body & top
- Oval soundhole
Neck:
- Set maple neck
- Rosewood fingerboard with dot inlays
- 34" scale
- 1.73" nut width
Binding:
- 7-ply body
- Single-ply neck
- Multi-ply 1-ring rosette
Electronics:
- Piezo under saddle transducer pickup
- Electar Epiphonic Six Preamp
- Volume, Sub Bass, Bass, Mid, Treble & Bright controls
- Low battery indicator
- Antifeedback control
Hardware:
- Chrome hardware
- Die cast tuners
- Rosewood bridge
Colors:
- Natural (NA)
El Capitan-5 Cutaway Fretless
- Model EBC5F
- 1996-2000
Body:
- Single cutaway body
- Maple body & top
- Oval soundhole
Neck:
- Set maple neck
- Rosewood fingerboard with dot inlays
- 34" scale
- 1.73" nut width
Binding:
- 7-ply body
- Single-ply neck
- Multi-ply 1-ring rosette
Electronics:
- Piezo under saddle transducer pickup
- Electar Epiphonic Six Preamp
- Volume, Sub Bass, Bass, Mid, Treble & Bright controls
- Low battery indicator
- Antifeedback control
Hardware:
- Chrome hardware
- Die cast tuners
- Rosewood bridge
Colors:
- Natural (NA)
