The Epiphone DR-Series is a, acoustic square-shoulder dreadnought guitar manufactured beginning 2003 and is still in production today. The DR-Series begain replacing the PR-Series in 2003 and uses the same or similar numerical suffixes and model numbers. Many DR-Series guitars are exactly the same design and construction as their PR-Series counterparts.


Contents

DR-90

DR-90

Epiphone DR-90
Epiphone DR-90
Epiphone DR-90
Epiphone DR-90 Acoustic Player Pack
  • Square shoulder dreadnought body style

Body:

  • Select spruce top
  • Mahogany back & sides

Neck:

  • Set mahogany neck
  • Rosewood fingerboard with dot inlays
  • 25.5" scale
  • 1.68" nut width

Binding:

  • 3-ply body
  • Multi-ply 3-ring rosette

Hardware:

  • Chrome hardware

Colors:

  • Natural (NA)

Player Pack Includes:

  • Epiphone DR90 Acoustic Guitar
  • Acoustic Guitar Gigbag
  • Pitch pipe
  • Guitar Strap
  • Guitar Picks
  • Instructional Guitar DVD

See Also: DR-Series Promotional Guitars

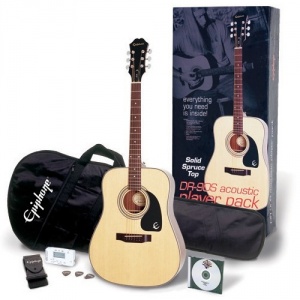

DR-90S

Epiphone DR-90
Epiphone DR-90
Epiphone DR-90S
Epiphone DR-90S Acoustic Player Pack
  • Square shoulder dreadnought body style

Body:

  • Select spruce top
  • Mahogany back & sides

Neck:

  • Set mahogany neck
  • Rosewood fingerboard with dot inlays
  • 25.5" scale
  • 1.68" nut width

Binding:

  • 3-ply body
  • Multi-ply 3-ring rosette

Hardware:

  • Chrome hardware

Colors:

  • Natural (NA)

Player Pack Includes:

  • Epiphone DR90 Acoustic Guitar
  • Acoustic Guitar Gigbag
  • Pitch pipe
  • Guitar Strap
  • Guitar Picks
  • Instructional Guitar DVD


DR-90T

Epiphone DR-90T
Epiphone DR-90T Player Pack
Epiphone DR-90T

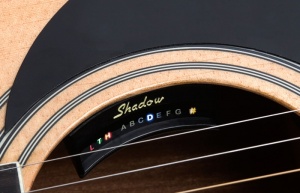

Epiphone DR-90T Player Pack Soundhole Tuner
Epiphone DR-90T
Epiphone DR-90T Player Pack Headstock
  • 2010-Current
  • Square shoulder dreadnought body style

Body:

  • Select spruce top
  • Select mahogany back & sides
  • Hand-scalloped bracing

Neck:

  • Set mahogany neck with SlimTaper "D" profile
  • Rosewood fingerboard with dot inlays
  • 12" fingerboard radius
  • 25.5" scale
  • 1.68" nut width

Binding:

  • Single-ply body & neck binding

Soundhole Tuner

  • Shadow Sonic Tuner
  • Installed in soundhole/Removable
  • One #2032 lithium battery
  • Built-in microphone
  • Auto-off
  • On/off button

Hardware:

  • Chrome hardware
  • Die-cast 14: 1 ratio tuners
  • Synthetic bone nut
  • Rosewood bridge with synthetic bone compensated saddle
  • Black pickguard with silkscreened "E" emblem

Colors:

  • Natural (NA)
  • Vintage Sunburst (VS)

Player Pack Includes:

  • Epiphone DR90T Acoustic Guitar
  • Metal wall hanger for guitar
  • Strap
  • Picks
  • Instructional DVD

See Also: AJ-220ST



DR-100

DR-100

Epiphone DR-100
Epiphone DR-100
  • Formerly PR-100
  • Model EA10
  • 2003-Current

Body:

  • Square shoulder dreadnought body style
  • Select Spuce top
  • Mahogany back & sides
  • Epi-X internal bracing

Neck:

  • Set mahogany neck with SlimTaper "D" profile
  • Rosewood fingerboard with dot inlays
  • 25.5" scale
  • 1.68" nut width

Binding:

  • Multi-ply 3-ring rosette
  • Single-ply body & neck binding

Hardware:

  • Chrome hardware
  • Non-adjustable rosewood bridge
  • Compensated saddle
  • Black bridge pins with white dots
  • Single-ply pickguard with "E" emblem
  • Single-ply truss rod cover with "DR" silk screen
  • Die-cast 14:1 ratio tuners

Colors:

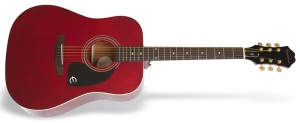

DR-100 Wine Red

Epiphone DR-100 Pearl
Epiphone DR-100 Wine Red
  • 2014

Body:

  • Square shoulder dreadnought body style
  • Select Spuce top
  • Mahogany back & sides
  • Epi-X internal bracing

Neck:

  • Set mahogany neck with SlimTaper "D" profile
  • Rosewood fingerboard with dot inlays
  • 25.5" scale
  • 1.68" nut width

Binding:

  • Multi-ply 3-ring rosette
  • Single-ply body & neck binding

Hardware:

  • Gold hardware
  • Non-adjustable rosewood bridge
  • Compensated saddle
  • Black bridge pins with white dots
  • Single-ply pickguard with "E" emblem
  • Single-ply truss rod cover with "DR" silk screen
  • Die-cast 14:1 ratio tuners

Colors:

  • Wine Red (WR)

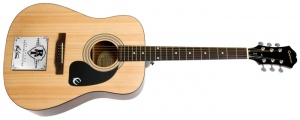

Randy Travis 25th Anniversary DR-100

Epiphone Randy Travis 25th Anniversary DR-100
Epiphone Randy Travis 25th Anniversary DR-100
  • 2011
  • Limited run of 800 guitars

Body:

  • Square shoulder dreadnought body style
  • Select Spuce top
  • Mahogany back & sides
  • Epi-X internal bracing

Neck:

  • Set mahogany neck with SlimTaper "D" profile
  • Rosewood fingerboard with dot inlays
  • 25.5" scale
  • 1.68" nut width

Binding:

  • Multi-ply 3-ring rosette
  • Single-ply body & neck binding

Hardware:

  • Gold hardware
  • Non-adjustable rosewood bridge
  • Compensated saddle
  • Black bridge pins with white dots
  • Single-ply pickguard with "E" emblem
  • Single-ply truss rod cover with "DR" silk screen
  • Die-cast 14:1 ratio tuners

Colors:

  • Natural (NA)

Includes:

  • Handsigned 25th Anniversary metal plaque
  • Certificate of authenticity

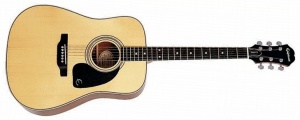

DR-200

DR-200

Epiphone DR-200
Epiphone DR-200
Epiphone DR-200
Epiphone DR-200
  • 2003-2004
  • Formerly PR-200
  • Model EA20
  • Square shoulder dreadnought body style

Body:

  • Select Spuce top
  • Mahogany back & sides
  • Epi-X internal bracing

Neck:

  • Set mahogany neck with SlimTaper "D" profile
  • Rosewood fingerboard with dot inlays
  • 25.5" scale
  • 1.68" nut width

Binding:

  • 5-ply body

Hardware:

  • Chrome hardware
  • Rosewood bridge
  • Single-ply black pickguard
  • Die-cast 14:1 ratio tuners

Colors:

  • Ebony (EB)
  • Natural (NA)
  • Vintage Sunburst (VS)

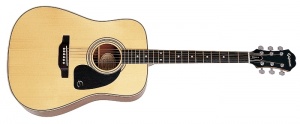

DR-200S

Epiphone DR-200S
Epiphone DR-200S
  • Formerly PR-350S
  • Model EE20
  • 2003-2004
  • Square shoulder dreadnought body style

Body:

  • Solid Sitka Spuce top with satin finish
  • Mahogany back & sides
  • Epi-X internal bracing

Neck:

  • Set mahogany neck with SlimTaper "D" profile
  • Rosewood fingerboard with dot inlays
  • 25.5" scale
  • 1.68" nut width

Binding:

  • 5-ply body

Hardware:

  • Chrome hardware
  • Rosewood bridge
  • Single-ply black pickguard
  • Die-cast 14:1 ratio tuners

Colors:

  • Ebony (EB)
  • Natural (NA)
  • Vintage Sunburst (VS)

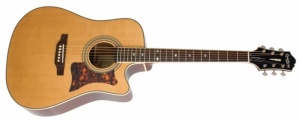

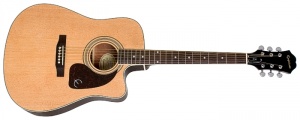

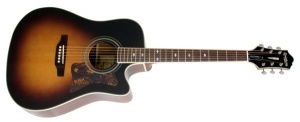

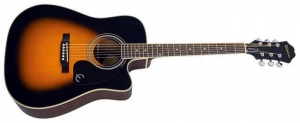

DR-200CE

Epiphone DR-200CE
Epiphone DR-200CE
Epiphone DR-200CE
Epiphone DR-200CE
Epiphone DR-200CE

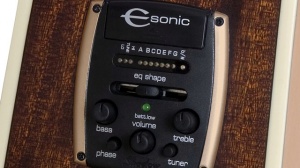

Epiphone DR-200CE Controls
  • Formerly PR-350CE
  • Model EE2C
  • Single-cutaway body style

Body:

  • Select spruce top
  • Mahogany back & sides

Neck:

  • Set mahogany neck
  • Rosewood fingerboard with dot inlays
  • Elongated headstock with no inlay
  • 25.5" scale
  • 1.68" nut width

Binding:

  • 5-ply body binding
  • Single-ply neck binding
  • Multi-ply 3-ring rosette

Electronics:

  • Shadow p-4 piezo pickup and preamp system (early models)
  • Shadow NanoFlex under-saddle pickup
  • Built-in chromatic tuner
  • EQ shape slider
  • Volume, bass & treble controls
  • Phase button
  • Tuner/mute button

Hardware:

  • Chrome or nickel hardware
  • Rosewood bridge with compensated saddle
  • White bridge pins with black dots
  • Tortoise pickguard with metal "E" emblem

Colors:

  • Natural (NA)
  • Vintage Sunburst (VS)

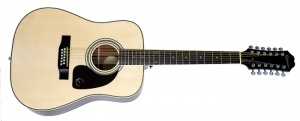

DR-212

Epiphone DR-212
Epiphone DR-212
Epiphone DR-212

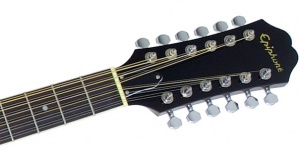

Epiphone DR-212 Headstock
  • Model EA2T
  • 2004-Current
  • Square shoulder dreadnought body style

Body:

  • Select spruce top
  • Mahogany back & sides
  • Scalloped fan bracing

Neck:

  • Set mahognay neck with SlimTaper profile
  • Rosewood fingerboard with dot inlays
  • Elongated headstock with no inlay
  • 25.5" scale
  • 1.75" nut width

Binding:

  • 5-ply body binding
  • Single-ply neck binding
  • Multi-ply 3-ring rosette

Hardware:

  • Chrome or nickel hardware
  • Rosewood bridge with uncompensated saddle
  • White bridge pins with black dots
  • Tortoise pickguard with "E" emblem
  • Black or tortoise pickguard with metal "E" emblem
  • Die-cast tuners

Colors:

  • Natural (NA)


DR-212S

Epiphone DR-212S
Epiphone DR-212S
  • Model EE2T
  • Square shoulder dreadnought body style

Body:

  • Solid spruce top
  • Mahogany back & sides
  • Scalloped fan bracing

Neck:

  • Set mahognay neck with SlimTaper profile
  • Rosewood fingerboard with dot inlays
  • Elongated headstock with no inlay
  • 25.5" scale
  • 1.75" nut width

Binding:

  • 5-ply body binding
  • Single-ply neck binding
  • Multi-ply 3-ring rosette

Hardware:

  • Chrome or nickel hardware
  • Rosewood bridge with uncompensated saddle
  • White bridge pins with black dots
  • Tortoise pickguard with "E" emblem
  • Black or tortoise pickguard with metal "E" emblem
  • Die-cast tuners

Colors:

  • Natural (NA)

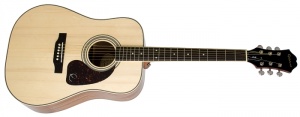

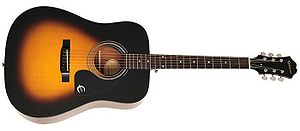

DR-220S

Epiphone DR-220S
Epiphone DR-220S
Epiphone DR-220S
Epiphone DR-220S
  • Model EAS2
  • Square shoulder dreadnought body style

Body:

  • Solid sitka spruce top
  • Select mahogany back & sides

Neck:

  • Set mahogany neck with SlimTaper "D" profile & satin finish
  • Dovetail neck joint
  • Rosewood fingerboard with dot inlays
  • Elongated headstock with no inlay
  • 12" fingerboard radius
  • 25.5" scale
  • 1.68" nut width

Binding:

  • 6-ply body binding
  • Single-ply fingerboard binding
  • Multi-ply 3-ring rosette

Hardware:

  • Nickel hardware
  • Die-cast 14: ratio tuners
  • Rosewood bridge with compensated saddle
  • Tortoise pickguard with metal "E" emblem

Colors:

  • Natural (NA)
  • Vintage Sunburst (VS)

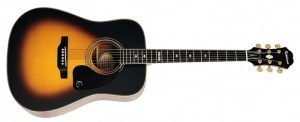

DR-300

DR-300S

Epiphone DR-300S
Epiphone DR-300S
Epiphone DR-300S
Epiphone DR-300S
  • Model EA03
  • Square shoulder dreadnought body style

Body:

  • Solid spruce top
  • Solid rosewood back and sides

Neck:

  • Set mahogany neck with SlimTaper profile
  • Rosewood fingerboard with slotted-diamond inlays
  • Block inlay at 12th fret
  • Traditional style headstock with pearl oval inlay
  • 20 frets
  • 25.5" scale
  • 1.68" nut width

Binding:

  • Multi-ply body binding
  • Single -ply neck binding

Hardware:

  • Gold hardware
  • Rosewood bridge with black bridge pins
  • Tortoise pickguard with metal "E" emblem
  • Die-cast tuners

Colors:

  • Natural (NA)
  • Vintage Sunburst (VS)

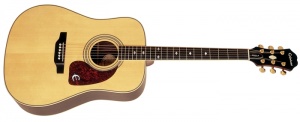

DR-350SM/SR

Epiphone DR-350SM
Epiphone DR-350SM
Epiphone DR-350SR
Epiphone DR-350SR
  • DR-350SM Formerly PR-350SM
  • DR-350SR Formerly PR-350SR
  • Square shoulder dreadnought body style

Body:

  • Solid spruce top
  • Solid mahogany back and sides (DR-350SM)
  • Solid rosewood back and sides (DR-350SR)

Neck:

  • Set mahogany neck with SlimTaper profile
  • Rosewood fingerboard with slotted-diamond inlays
  • Traditional style headstock with pearl oval inlay
  • 20 frets
  • 25.5" scale
  • 1.68" nut width

Binding:

  • Multi-ply body binding
  • 1-ply neck binding
  • Multi-ply 3-ring rosette

Hardware:

  • Gold hardware
  • Rosewood bridge with black bridge pins
  • Tortoise pickguard with "E" emblem
  • Die-cast tuners

Colors:

  • Natural (NA)


DR-350-12/E

  • Model EA2T & EE2T
  • Formerly PR-350-12
  • Square shoulder dreadnought body style

Body:

  • Solid spruce top
  • Solid mahogany back and sides

Neck:

  • Set mahogany neck with SlimTaper profile
  • Rosewood fingerboard with slotted-diamond inlays
  • Traditional style headstock with pearl oval inlay
  • 20 frets
  • 25.5" scale
  • 1.68" nut width

Binding:

  • Multi-ply body binding

Electronics:

  • Epiphone-V Electronics System (DR-350-12E)

Hardware:

  • Gold hardware
  • Rosewood bridge with black bridge pins
  • Tortoise pickguard with "E" emblem
  • Die-cast tuners

Colors:

  • Natural (NA)



Masterbilt Series DR-500

Masterbilt DR-500M/ME

Epiphone Masterbilt

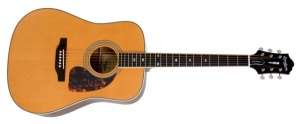

Epiphone Masterbilt DR-500M Natural
Epiphone Masterbilt
Epiphone Masterbilt DR-500M Natural Satin
  • 2004-2011
  • Square shoulder dreadnought body style

Body:

  • Premium Solid Sitka Spruce top
  • Premium Solid Mahogany body

Neck:

  • 1-piece set mahogany neck with SlimTaper "D" profile
  • Rosewood Fingerboard with Split Diamond inlays
  • Masterbilt headstock with stickpin inlay
  • 14" fingerboard radius
  • 25.5” scale
  • 1.68” nut width

Binding:

  • 6-ply body binding
  • 1-ply neck binding
  • Multi-ply 3-ring rosette

Electronics:

  • Baggs Element pickup (DR-500ME)

Hardware:

  • Nickel hardware
  • Non-adjustable rosewood reverse-belly bridge
  • Bone nut & saddle
  • Tortoise teardrop pickguard
  • 18:1 Grover Sta-Tite tuners

Colors:

  • Natural (NA)
  • Natural Satin (NS)


Masterbilt DR-500MCE

Epiphone Masterbilt
Epiphone Masterbilt DR-500MCE
Epiphone Masterbilt
Epiphone Masterbilt DR-500MCE
Epiphone Masterbilt

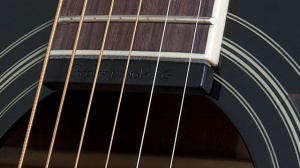

Epiphone Masterbilt DR-500MCE NanoMag Pickup
  • 2010-Current
  • Square shoulder single-cutaway dreadnought body style

Body:

  • Premium Solid Mahogany body
  • Premium Solid Sitka Spruce top

Neck:

  • 1-piece set mahogany neck with SlimTaper "D" profile
  • Rosewood FIngerboard with Split Diamond inlays
  • Masterbilt dovewing headstock with stickpin inlay
  • 14" fingerboard radius
  • 25.5” scale
  • 1.68” nut width

Binding:

  • 6-ply body binding
  • 3-ply headstock binding
  • 1-ply neck binding

Electronics:

  • Shadown NanoMag/NanoFlex pickups
  • eSonic-2 stereo preamp & EQ

eSonic Preamp:

  • Stereo output
  • Chromatic tuner
  • Master volume
  • NanoMag & NanoFlex blend control
  • Individual NanoMag & NanoFlex EQ controls
  • Phase & tuner push-buttons
  • 9-volt battery

Hardware:

  • Nickel hardware
  • Non-adjustable rosewood reverse-belly bridge
  • Bone nut & saddle
  • 18:1 grover Sta-Tite tuners
  • Contoured tortoise pickguard

Colors:

  • Antique Sunburst (AS)
  • Natural Satin (NS)


Masterbilt DR-500P/PE

Epiphone Masterbilt
Epiphone Masterbilt DR-500P
  • 2004-2011
  • Square shoulder dreadnought body style

Body:

  • Solid Sitka Spruce top
  • Solid maple body

Neck:

  • 1-piece set maple neck with SlimTaper "D" profile
  • Rosewood Fingerboard with Split Diamond inlays
  • Masterbilt headstock with stickpin inlay
  • 14" fingerboard radius
  • 25.5” scale
  • 1.68” nut width

Binding:

  • 6-ply body binding
  • 1-ply neck & headstock binding
  • Multi-ply 3-ring rosette

Electronics:

  • Baggs Element pickup (DR-500PE)

Hardware:

  • Nickel hardware
  • Non-adjustable rosewood reverse-belly bridge
  • Bone nut & saddle
  • Tortoise teardrop pickguard
  • 18:1 Grover Sta-Tite tuners

Colors:

  • Natural Satin (NS)


Masterbilt DR-500R/RE

Epiphone Masterbilt
Epiphone Masterbilt DR-500R
Epiphone Masterbilt
Epiphone Masterbilt DR-500R
  • 2004-Present
  • Square shoulder dreadnought body style

Body:

  • Solid Sitka Spruce top
  • Solid Rosewood body

Neck:

  • 1-piece set maple neck with SlimTaper "D" profile
  • Rosewood Fingerboard with Split Diamond inlays

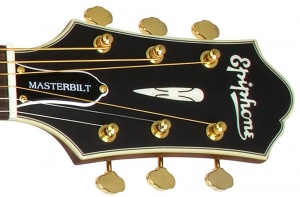

  • Masterbilt headstock with stickpin inlay
  • 14" fingerboard radius
  • 25.5” scale
  • 1.68” nut width

Binding:

  • 6-ply body binding
  • 1-ply neck & headstock binding
  • Multi-ply 3-ring rosette

Electronics:

  • Baggs Element pickup (DR-500PE)

Hardware:

  • Nickel hardware
  • Non-adjustable rosewood reverse-belly bridge
  • Bone nut & saddle
  • Tortoise teardrop pickguard
  • 18:1 Grover Sta-Tite tuners

Colors:

  • Natural Satin (NS)


Masterbilt DR-500RA

Epiphone Masterbilt
Epiphone Masterbilt DR-500RA
Epiphone Masterbilt
Epiphone Masterbilt DR-500RA
  • 2004-2005
  • Square shoulder dreadnought body style

Body:

  • Solid Sitka Spruce top
  • Solid rosewood body

Neck:

  • 1-piece set maple neck with SlimTaper "D" profile
  • Rosewood Fingerboard with Split Diamond inlays
  • Masterbilt headstock with stickpin inlay
  • 14" fingerboard radius
  • 25.5” scale
  • 1.68” nut width

Binding:

  • 6-ply body binding with Abalone center
  • 1-ply neck & headstock binding
  • Multi-ply 3-ring rosette with Abalone center

Electronics:

  • Baggs Element pickup (DR-500PE)

Hardware:

  • Nickel hardware
  • Non-adjustable rosewood reverse-belly bridge
  • Bone nut & saddle
  • Tortoise teardrop pickguard
  • 18:1 Grover Sta-Tite tuners

Colors:

  • Natural Satin (NS)
  • Vintage Sunburst Satin (VSS)


Electrics | Archtops | Acoustics | Basses | Bluegrass | Amplifiers | Promotional Guitars

other guitar wikis
