E-Series Amplifiers

From The Unofficial Epiphone Wiki
Jump to: navigation, search

Contents

Models


E-60/T

Epiphone E-60 Amplifier
Epiphone E-60 Amplifier
  • 1972-1975

Models:

  • E-60
  • E-60T

Power:

  • Solid state circuitry
  • 30 watts

Speakers:

  • One 10" speaker

Inputs:

  • Single channel
  • 2 inputs

Controls:

  • Volume & tone controls
  • Tremolo (E-60T)
  • Pilot light

Chassis:

  • Black grille cloth
  • Top-mounted rubber carrying handle



E-65

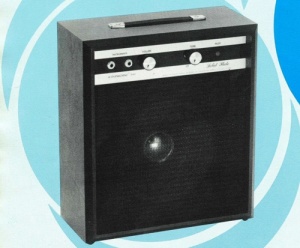

Epiphone E-65 Amplifier
Epiphone E-65 Amplifier
  • 1974-1979
  • 16"W x 19"H x 8.5"D
  • 16 lbs

Power:

  • Solid state circuitry
  • 5 watt RMS / 10 watt Peak
  • 100 millivolts at full-rated power
  • Accessible printed circuit module
  • Schematic and parts-list included

Speakers:

  • Wide range, heavy duty 10" speaker
  • Extra-heavy speaker magnet
  • Fused power supply

Inputs:

  • 2 input jacks

Controls:

  • Volume & tone controls
  • Pilot light

Chassis:

  • Tolex covered case
  • Black grille cloth
  • Top-mounted rubber carrying handle



E-70

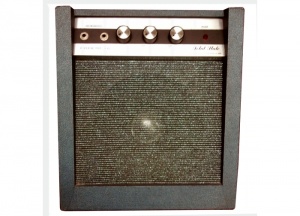

Epiphone E-70 Amplifier
Epiphone E-70 Amplifier
  • 1971-1975

Power:

  • Solid state circuitry

Speakers:

  • One 10" speaker

Inputs:

  • Single channel
  • 2 inputs

Controls:

  • Front-mounted control panel
  • Tremolo
  • Volume, tone & tremolo controls
  • Pilot light

Chassis:

  • Tolex covered case
  • Black grille cloth
  • Top-mounted rubber carrying handle



E-75

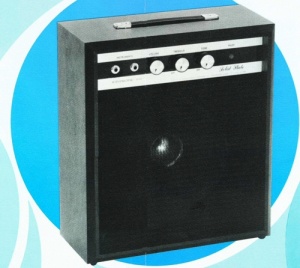

Epiphone E-75 Amplifier
Epiphone E-75 Amplifier
  • 1974-1979
  • 16"W x 19"H x 8.5"D
  • 16 lbs

Power:

  • Solid state circuitry
  • 5 watt RMS / 10 watt Peak
  • 100 millivolts at full-rated power
  • Fused power supply
  • Accessible printed circuit module
  • Schematic and parts-list included

Speakers:

  • Wide range, heavy duty 10" speaker
  • Extra-heavy speaker magnet

Inputs:

  • 2 input jacks

Controls:

  • Volume, tone & tremolo controls
  • Pilot light

Chassis:

  • Tolex covered case
  • Black grille cloth
  • Top-mounted rubber carrying handle



E-85

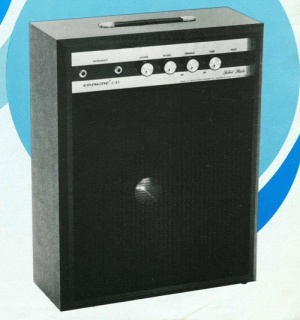

Epiphone E-85 Amplifier
Epiphone E-85 Amplifier
  • 1974-1979
  • 18"W x 23"H x 8"D
  • 23 lbs

Power:

  • Solid state circuitry
  • 8 watt RMS / 16 watt Peak
  • 100 millivolts at full-rated power
  • Fused power supply
  • Accessible printed circuit module
  • Schematic and parts-list included

Speakers:

  • Wide range, heavy duty 12" speaker
  • Extra-heavy speaker magnet

Inputs:

  • 2 input jacks

Controls:

  • Volume, tone, reverb & tremolo controls
  • Pilot light

Chassis:

  • Tolex covered case
  • Black grille cloth
  • Top-mounted rubber carrying handle



E-20B

Epiphone E-20B Amplifier
Epiphone E-20B Amplifier
  • 1974-1979
  • 19"W x 29"H x 10"D
  • 41 lbs

Power:

  • Solid state circuitry
  • 20 watt RMS / 40 watt Peak
  • 30 millivolts at full-rated power
  • "Soft Overdrive Sound" circuitry

Speakers:

  • Front loaded speaker
  • Wide range, heavy duty 15" bass speaker
  • Extra-heavy speaker magnet
  • Fused power supply
  • Accessible printed circuit module
  • Schematic and parts-list included

Inputs:

  • 2 input jacks

Controls:

  • Volume, treble & bass controls
  • 3-position on/off/polarity switch
  • Pilot light

Chassis:

  • Tolex covered case
  • Black grille cloth
  • Large rubber feet
  • AC cord wrap
  • Side-mounted rubber carrying handle



E-30B

Epiphone Bass-30 E-30B Amplifier Epiphone Bass-30 E-30B Amplifier
Epiphone Bass-30 E-30B Amplifier
Epiphone Bass-30 E-30B Amplifier
Epiphone E-20B Amplifier
Epiphone Bass-30 E-30B Amplifier
  • 1971-1979
  • 17.25" x 31.75" x 10"
  • 53 lbs

Power:

  • Solid state circuitry
  • 30 watt RMS / 60 watt Peak
  • 30 millivolts at full-rated power
  • "Soft Overdrive Sound" circuitry
  • Fused power supply
  • Accessible printed circuit module
  • Schematic and parts-list included

Speakers:

  • Front loaded speaker
  • Two Wide range, heavy duty 12" bass speakers
  • Extra-heavy speaker magnet

Inputs:

  • 2 input jacks

Controls:

  • Volume, treble & bass controls
  • 3-position on/off/polarity switch
  • Pilot light

Chassis:

  • Tolex covered case
  • Black grille cloth
  • Large rubber feet
  • AC cord wrap
  • Top & side-mounted rubber carrying handle
  • Optional B50C cover



E-1051

  • Circa 1971
  • Tube chassis
  • One 10" speaker
